2  Functional Testing

Authors

Briha Ansari

Patrick Sadil

Functional testing (also called performance-based testing) is an objective measure of a participants physical functionality and complements self-reported pain and disability. Before surgery, A2CPS collects a short battery of standardized functional tasks, it records the pain a participant reports right before and right after each task. The change in pain across a task gives us a measure of movement-evoked pain (MEP), i.e., pain that is provoked by movement rather than pain at rest. MEP is increasingly recognized as its own meaningful construct.

The battery is tailored to each surgical cohort:

The pain ratings are double-entered (each rating is recorded twice) to guard against errors. The reformatted data also comprises derived MEP scores.

2.1 Starting Project

2.1.1 Locate Data

Where are the relevant files?

$ /corral-secure/projects/A2CPS/products/consortium-data/pre-surgery-release-2-1-0/functional-testing/reformatted

The reformatted data are split by cohort: reformatted_tka_func.csv (knee, with the walk and sit-to-stand measures) and reformatted_thor_func.csv (thoracic, with the deep breathing and coughing measures). Each one comes with an updated data dictionary, updated_func_dict.csv, which lists the original REDCap field names alongside the fields added during cleaning.

2.1.2 Extract Data

Here we use the tidyverse, and we focus on the TKA cohort, which has the two lower-limb tasks.

library(tidyverse)
func <- read_csv("data/pre-surgery/functional-testing/reformatted/reformatted_tka_func.csv")

The two derived movement-evoked pain scores are mep_walk (10-meter walk) and mep_5tsts (5-times sit-to-stand). Each one is the final pain rating minus the initial pain rating for that task, so higher values mean more pain was evoked by the movement.

func |>
  select(record_id, walk10initialpainscl, walk10finalpainscl, mep_walk,
         tstsprepainscl, tstspostpainscl, mep_5tsts) |>
  head()
record_id walk10initialpainscl walk10finalpainscl mep_walk tstsprepainscl tstspostpainscl mep_5tsts
10001 4 4 0 5.0 6 1.0
10003 0 2 2 0.0 3 3.0
10004 1 1 0 2.0 1 -1.0
10005 5 5 0 5.0 6 1.0
10006 1 1 0 1.5 2 0.5
10007 NA NA NA NA NA NA

Next, check the data types and make sure the numeric variables are stored as numbers and the categorical variables are not accidentally stored as numeric. glimpse() gives us a quick column-by-column view.

glimpse(func)
Rows: 1,042
Columns: 40
$ record_id                   <dbl> 10001, 10003, 10004, 10005, 10006, 10007, …
$ guid                        <chr> "90F8FC45-5D53-0DE4-6853-284607A8C4E6", "3…
$ redcap_data_access_group    <chr> "rush_university_me", "rush_university_me"…
$ redcap_event_name           <chr> "baseline_visit_arm_1", "baseline_visit_ar…
$ redcap_repeat_instrument    <chr> "functional_testing", "functional_testing"…
$ redcap_repeat_instance      <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, …
$ walk10initialpainscl        <dbl> 4.0, 0.0, 1.0, 5.0, 1.0, NA, 2.0, 1.5, 1.0…
$ walk10initialpainscl1       <dbl> 4.0, 0.0, 1.0, 5.0, 1.0, NA, 2.0, 1.5, 1.0…
$ walk10finalpainscl          <dbl> 4.0, 2.0, 1.0, 5.0, 1.0, NA, 4.0, 3.0, 1.0…
$ walk10finalpainscl1         <dbl> 4.0, 2.0, 1.0, 5.0, 1.0, NA, 4.0, 3.0, 1.0…
$ walk10time                  <dbl> 8.1, 8.3, 5.1, 4.6, 7.6, NA, 7.4, 5.7, 5.1…
$ walk10time1                 <dbl> 8.1, 8.3, 5.1, 4.6, 7.6, NA, 7.4, 5.7, 5.1…
$ walk10completeyn            <dbl> 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 1, …
$ walk10incompletereason      <dbl> NA, NA, NA, NA, NA, 1, NA, NA, NA, NA, NA,…
$ walk10assistyn              <dbl> 0, 0, 0, 0, 1, NA, 0, 0, 0, 0, 0, 0, 0, 0,…
$ walk10assist_cane___1       <dbl> 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, …
$ walk10assist_crutch___1     <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, …
$ walk10assist_walkder___1    <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, …
$ walk10assist_perssuppt___1  <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, …
$ walk10assist_other___1      <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, …
$ walk10assist_othertxt       <chr> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA…
$ walk10comments              <chr> NA, NA, NA, NA, NA, "re-consented to study…
$ tstsbpscreen                <dbl> 1, 1, 1, 1, 1, NA, 1, 1, 1, 1, 1, 1, 1, 1,…
$ tstsprepainscl              <dbl> 5.0, 0.0, 2.0, 5.0, 1.5, NA, 0.0, 0.5, 0.0…
$ tstsprepainscl1             <dbl> 5.0, 0.0, 2.0, 5.0, 1.5, NA, 0.0, 0.5, 0.0…
$ tstspostpainscl             <dbl> 6.0, 3.0, 1.0, 6.0, 2.0, NA, 3.5, 3.5, 2.0…
$ tstspostpainscl1            <dbl> 6.0, 3.0, 1.0, 6.0, 2.0, NA, 3.5, 3.5, 2.0…
$ tststime                    <dbl> 22.6, 15.6, 10.0, 15.7, 25.5, NA, 12.3, 12…
$ tststime1                   <dbl> 22.6, 15.6, 10.0, 15.7, 25.5, NA, 12.3, 12…
$ tstscompleteyn              <dbl> 1, 1, 1, 1, 1, 0, 1, 1, 1, 1, 1, 1, 1, 0, …
$ tstsnonreasonyn             <dbl> NA, NA, NA, NA, NA, 2, NA, NA, NA, NA, NA,…
$ tstsnumbrepsyn              <dbl> NA, NA, NA, NA, NA, NA, NA, NA, NA, NA, NA…
$ tstsassistyn                <dbl> 0, 0, 0, 0, 0, NA, 0, 0, 0, 0, 0, 0, 0, 1,…
$ tstsassist_1___1            <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, …
$ tstsassist_2___1            <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, …
$ tstsaddnotes                <chr> NA, NA, "She said that the cartilage in he…
$ functional_testing_complete <dbl> 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, …
$ cohort                      <chr> "TKA", "TKA", "TKA", "TKA", "TKA", "TKA", …
$ mep_walk                    <dbl> 0.0, 2.0, 0.0, 0.0, 0.0, NA, 2.0, 1.5, 0.0…
$ mep_5tsts                   <dbl> 1.0, 3.0, -1.0, 1.0, 0.5, NA, 3.5, 3.0, 2.…

2.1.3 Data Quality

The reformatted files have already been curated, following are some of the important steps we used:

  • Test records removed. Placeholder records used during site setup (e.g., record_id values like 10000 or 15000) are dropped.
  • Completed tasks only, latest attempt. Only rows marked complete (functional_testing_complete == 2) are kept, and where a task was repeated, we kept the most recent repeat instance, so we end up with one row per participant and visit.
  • Movement-evoked pain needs both endpoints. mep_walk and mep_5tsts are only defined when both the initial and the final pain rating are present, and otherwise they are missing. So expect a modest number of missing MEP values even among completed tasks.
  • Error report. The cleaning workflow produces an error report that flags discrepancies between the double-entered pain ratings and other internal inconsistencies (for example, a task marked complete but missing a required pain rating). ### Cross-Modality Links

Every file includes record_id and guid, which are unique participant identifiers used to link their records across other A2CPS modalities (imaging, QST, psychosocial, biospecimen, etc.). To combine functional data with another modality, we join on the shared identifiers:

inner_join(func, other_modality, by = intersect(names(func), names(other_modality)))

2.2 Exploratory data analysis

Both tasks evoke pain through movement. If walking and standing provoke pain through a common mechanism, then a participant who is sensitive to one should also be sensitive to the other, and the two MEP scores should track together.

We first compare the two tasks. On average, sit-to-stand evokes noticeably more pain than the 10-meter walk (mean mep_5tsts ≈ 1.85 vs. mep_walk ≈ 0.67), which makes sense since rising from a chair loads the knee more than walking on level ground does.

func |>
  summarise(
    across(
      c(mep_walk, mep_5tsts),
      list(n = ~sum(!is.na(.x)), mean = ~mean(.x, na.rm = TRUE), sd = ~sd(.x, na.rm = TRUE))
    )
  )
mep_walk_n mep_walk_mean mep_walk_sd mep_5tsts_n mep_5tsts_mean mep_5tsts_sd
1015 0.6660099 1.282478 991 1.852674 1.97982

Since both scores are bounded, discrete difference scores rather than smooth continuous measures, a spearman (rank-based) correlation is a better choice here than pearson. We add use = "complete.obs" to ignore rows that are missing either score.

cor(func$mep_walk, func$mep_5tsts, method = "spearman", use = "complete.obs")
[1] 0.2527416

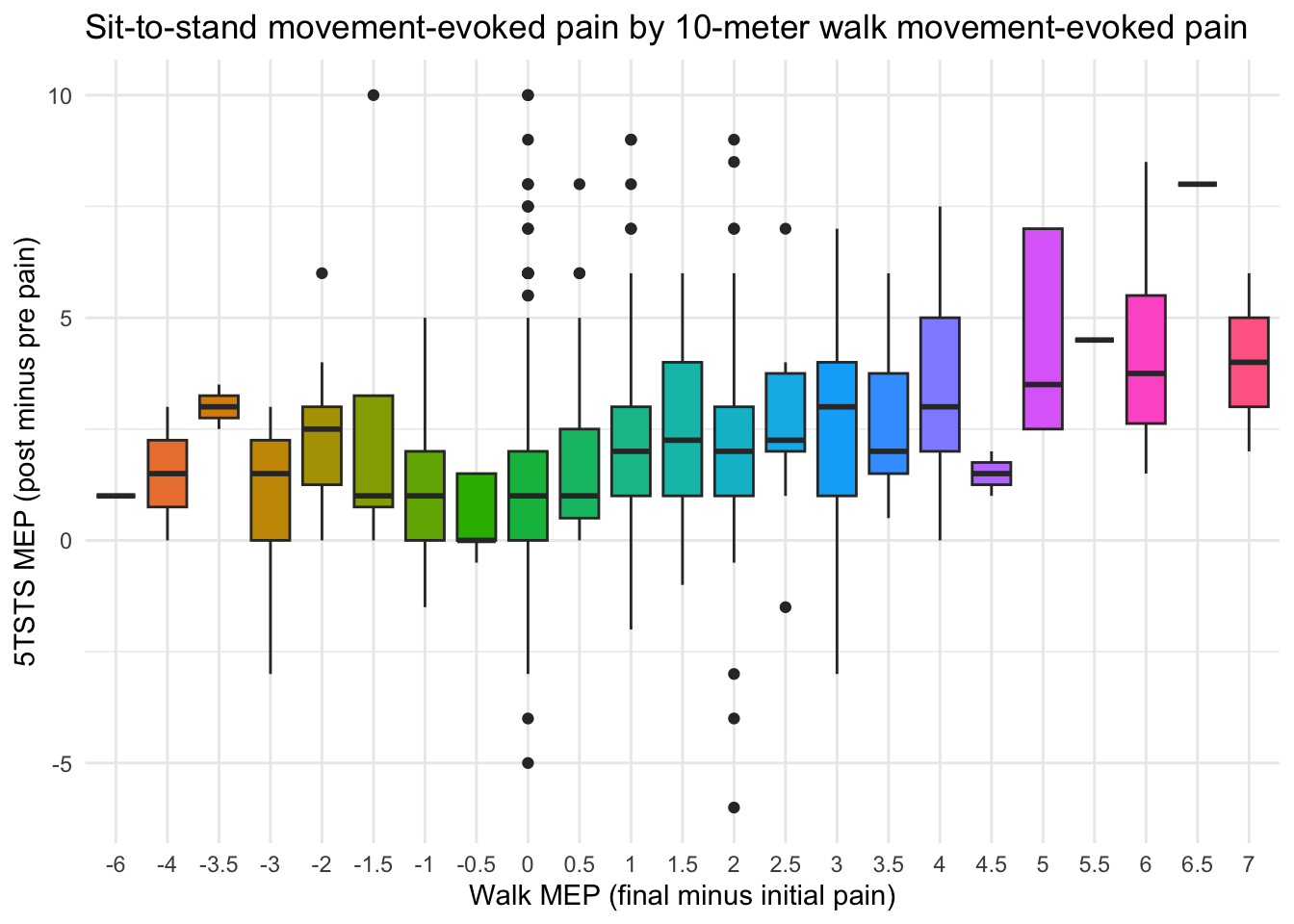

The correlation is positive but modest (≈ 0.25). So the two tasks are related, but not highly correlated i.e., each one captures a somewhat different aspect of movement-evoked pain. For MEP, it is worth looking at both rather than treating one as a surrogate for the other. Visualize the relationship with a boxplot of sit-to-stand MEP grouped by walk MEP.

func |>
  filter(!is.na(mep_walk), !is.na(mep_5tsts)) |>
  ggplot(aes(x = factor(mep_walk), y = mep_5tsts, fill = factor(mep_walk))) +
  geom_boxplot(show.legend = FALSE) +
  labs(
    title = "Sit-to-stand movement-evoked pain by 10-meter walk movement-evoked pain",
    x = "Walk MEP (final minus initial pain)",
    y = "5TSTS MEP (post minus pre pain)"
  ) +
  theme_minimal()

2.3 Considerations While Working on the Project

2.3.1 Data Generation

Functional tasks are administered in person by trained study staff, following the A2CPS Manual of Procedures, which specifies the walk course, the sit-to-stand protocol, the deep breathing and coughing maneuver, and the timing of the pre- and post-task pain ratings. Raw responses are captured in REDCap, and the pain ratings are double-entered to reduce error. The steps that turn the REDCap export into the reformatted files (filtering, deduplication, error checking, and computing the MEP derivatives) are documented in the cleaning workflow that comes with the release (FuntionalCRF_data_quality_checks_and_reformat.html).

2.3.2 Other

  • Movement-evoked pain, not resting pain. The MEP derivatives are change scores tied to a specific task, so they behave differently from resting or clinical pain measures.
  • Cohort-specific batteries. The TKA and thoracic cohorts do not share tasks, so mep_walk and mep_5tsts show up only for the TKA cohort, while the thoracic file carries the deep breathing and coughing measures instead.
  • Sample size after merging. Joining with other modalities can shrink the effective sample size, so the counts are worth a glance after each merge.
  • Quality control. The cleaning and derivative code has been reviewed, and a derivative can be reproduced from the raw pain ratings using the accompanying workflow.

2.3.3 Citations

In publications or presentations including data from A2CPS, please include the following statement as attribution:

Data were provided (in part) by the A2CPS Consortium funded by the National Institutes of Health (NIH) Common Fund, which is managed by the Office of the Director (OD)/Office of Strategic Coordination (OSC). Consortium components and their associated funding sources include Clinical Coordinating Center (U24NS112873), Data Integration and Resource Center (U54DA049110), Omics Data Generation Centers (U54DA049116, U54DA049115, U54DA049113), Multi-site Clinical Center 1 (MCC1) (UM1NS112874), and Multi-site Clinical Center 2 (MCC2) (UM1NS118922).

Note

The following published papers should be cited when referring to A2CPS Protocol and Biomarkers: Sluka et al. (2023) Berardi et al. (2022)

Berardi, G., Frey-Law, L., Sluka, K. A., Bayman, E. O., Coffey, C. S., Ecklund, D., Vance, C. G. T., Dailey, D. L., Burns, J., Buvanendran, A., McCarthy, R. J., Jacobs, J., Zhou, X. J., Wixson, R., Balach, T., Brummett, C. M., Clauw, D., Colquhoun, D., Harte, S. E., … Wandner, L. D. (2022). Multi-site observational study to assess biomarkers for susceptibility or resilience to chronic pain: The acute to chronic pain signatures (A2CPS) study protocol. Frontiers in Medicine, 9. https://doi.org/10.3389/fmed.2022.849214
Sluka, K. A., Wager, T. D., Sutherland, S. P., Labosky, P. A., Balach, T., Bayman, E. O., Berardi, G., Brummett, C. M., Burns, J., Buvanendran, A., et al. (2023). Predicting chronic postsurgical pain: Current evidence and a novel program to develop predictive biomarker signatures. Pain, 164(9), 1912–1926. https://doi.org/10.1097/j.pain.0000000000002938
